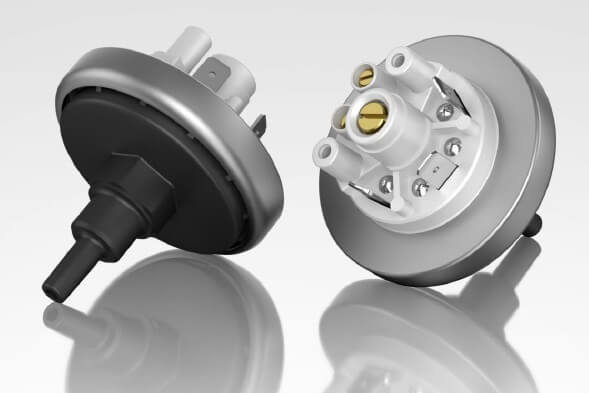

Beck - The factory-set pressure switch 903 for lower switching values.
|
|
|
|
Factory-set pressure switch monitoring overpressure
of liquid and gaseous media. Pressure
setting and switching differential are factory set
by the manufacturer.
Factory-set trip pressure between 3 mbar and 50 mbar
Standard switching differential between 1,5 mbar and 15 mbar
Temperature range Ambient temperature : –20° C to 85° C.
Tolerance band of trip pressure : ± 10 %
Maximum positive working pressure : 300 mbar
Download E-Brochure
|
|

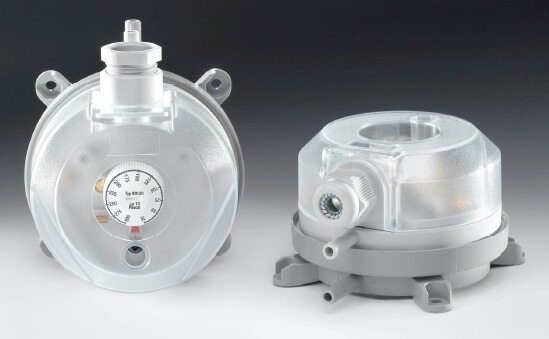

Beck - Differential Pressure Switch 930.8x Climair® With Adjustable Switching Pressure
|
|
|
|
Adjustable differential pressure switch for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases
Maximum operating pressure 10 kPa for all pressure ranges.
Diaphragm material Silicone, tempered at 200°C, free of gas emissions.
Temperature range Medium and ambient temperature from –20°C to +85°C.
Download E-Brochure
|
|

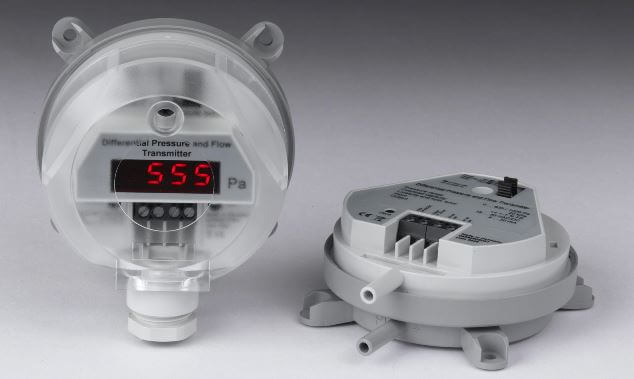

Beck - Differential Pressure Transmitter 984
|
|
|
|
The differential pressure transmitters of the 984 series are used to measure differential pressure, overpressure and vacuum.
They provide up to 8 pressure ranges and 2 output signals, which are easily selectable by jumper or rotary selector switch.
Download E-Brochure
|
|

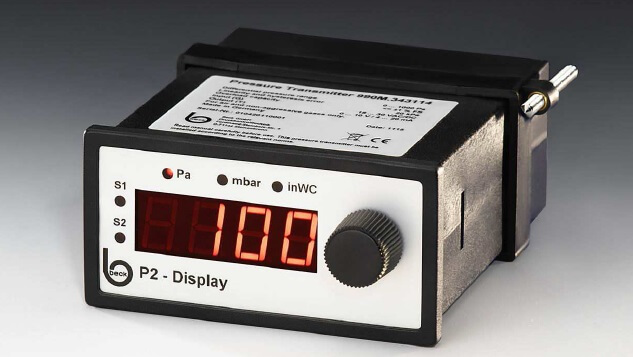

Beck - The Differential Pressure Gauge Display P2 For Air
|
|
|
|
The differential pressure gauges display P2 for panel mounting are used for the measurement of differential, positive and vacuum pressures.
They offer an adjustable measurement range and two output signals, which can be selected in the menu.
Type 990M with manual zeroing Type 990A with automatic zeroing Pulse rates up to 10000 PPR (real)
Download E-Brochure
|
|

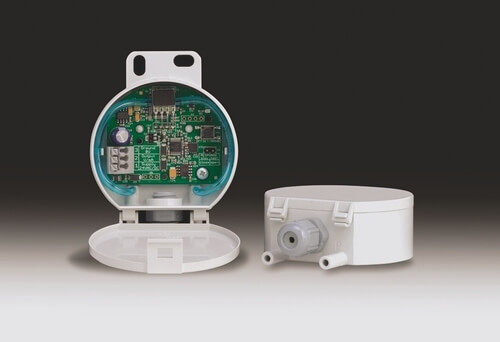

Beck - Differential Pressure Transmitter 982R
|
|
|
|
The differential pressure transmitters of the 982M series are
used to measure differential pressure, overpressure and
vacuum.
They provide one adjustable pressure range and
one output signal.
The end of the pressure range can be reduced to 50% of its factory set full scale value simply by the use of a push-button.
Download E-Brochure
|
|

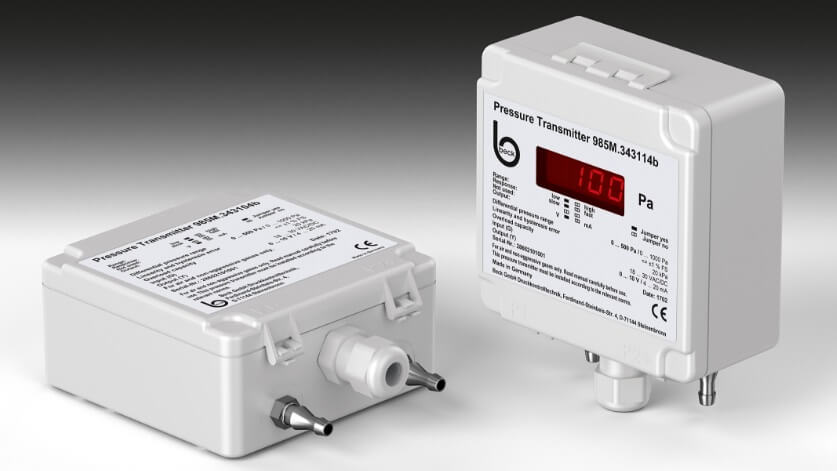

Beck - Differential pressure transmitter 985 with IP65
|
|
|
|
The differential pressure transmitters of the 985 series are used to measure differential pressure, overpressure and vacuum
They provide up to 8 pressure ranges and 2 output signals, which are easily selectable by jumper or rotary selector switch.
Piezoresistive pressure transducer
Download E-Brochure
|
|

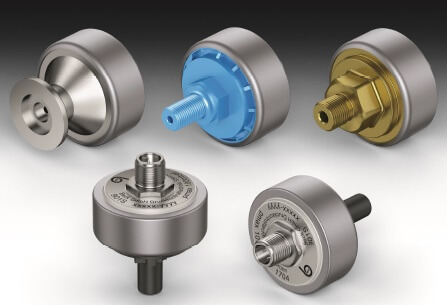

Beck - Pressure Transmitter 981
|
|
|
|
Analogue pressure transmitter monitoring overpressure, vacuum or differential pressure of liquid and gaseous – also aggressive – media
Temperature range : Ambient temperature from –20°C bis +85°C
Diaphragm material : Depending on media: NBR, Silicone, FKM (Viton®), EPDM.
Pressure range : 0 to 100 mbar.
Maximum operating pressure : 500 mbar
Download E-Brochure
|
|

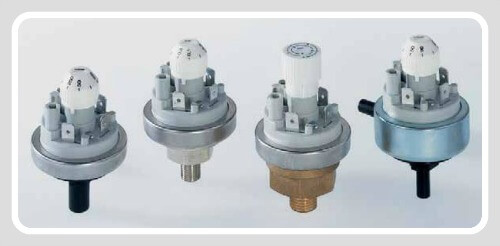

Beck - Pressure Switch 901 Prescal ® With Adjustable Setting
|
|
|
|
Adjustable pressure switch monitoring overpressure, vacuum or differential pressure of liquid and gaseous – also aggressive – media.
The pressure switch uses a scaled adjustment knob to enable the adjustment of trip and reset pressure without the use of a screwdriver.
Temperature range : Ambient temperature from –20° C to 85° C. Temperature of media from 85° C or 130° C depending on material of pressure connection and diaphragm.
Diaphragm material : Depending on media NBR, Silicone, FKM (Viton®), EPDM. For 901.8x Silicone,
Download E-Brochure
|
|

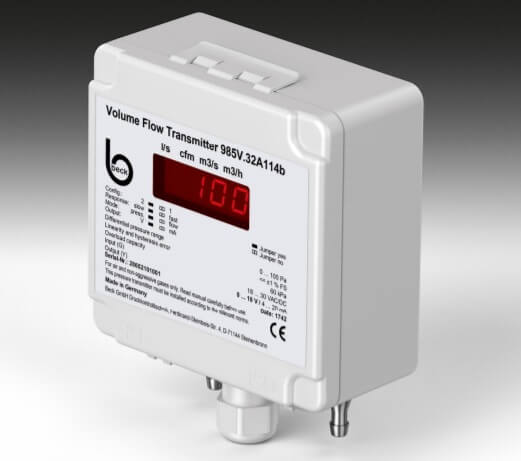

Beck - Volume Flow Transmitter 985V With IP65
|
|
|
|
The transmitters of the 985V series are used to measure volume flow, differential pressure, overpressure and vacuum. A jumper enables switching between volume flow and pressure measurement
Output signal selection : The output signal can be changed between 0 to 10 Volt and 4 to 20 mA by removing a jumper
Download E-Brochure
|
|
