Dwyer Temperature/Process Loop Controllers
|
|
|
|

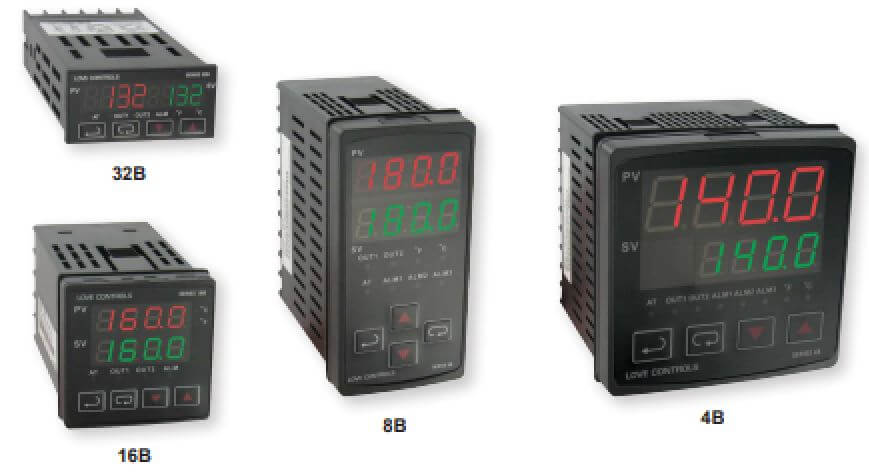

The SERIES 32B, 16B, 8B, & 4B Temperature/Process Loop Controllers offer advanced control features for the most demanding temperature or process applications. Offered in 4 standard DIN cutout housing sizes, these controllers are designed with dual, 4 digit LED displays for local indication of the process value, setpoint, and output conditions.
Temperature/process loop controllers, Universal Input, Dual Control Output, RS-485 Communication
Universal input accepts process transmitters, RTD’s or thermocouple signals
On/off, PID, or manual output control
RS-485 standard on all models
Stage control program for up to 64 ramp/soak actions
Download E-Brochure
|
|
Dwyer Temperature Loop Controllers
|
|
|
|

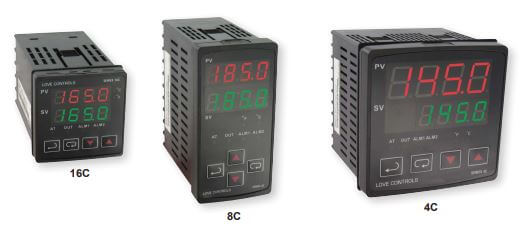

The Series 16C, 8C, & 4C Temperature Loop Controllers offer advanced control features for the most demanding temperature or process applications. Offered in 3 standard DIN cutout housing sizes, these controllers are designed with dual, 4 digit LED displays for local indication of the process value, setpoint, and output conditions.
Temperature loop controllers, Universal Temperature Input, Single Control Output, RS-485 Communication
Universal input accepts RTD or thermocouple sensors
On/Off, PID, or manual output control
RS-485 standard on all models
Download E-Brochure
|
|
