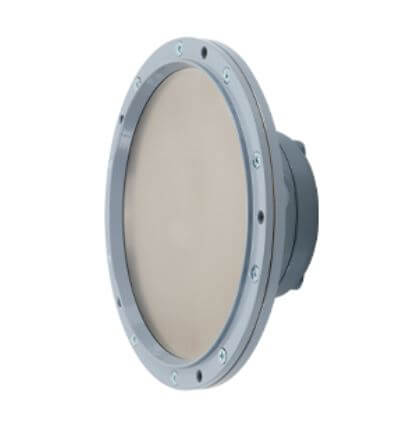

Filsa - AD
|
|
|
|
Reinforced membrane level indicator. Is to be used to control normally the minimum level of bulk solids in silos or vessels and with high density bulk goods.
Density of the product 0.3 t/m3 ... 2.5 t/m3
Maximum pressure +0.5 bar
Cable entry M20x1.5
Maximum voltage 250 V AC
AD standard -20 ºC ... +80 ºC
Weight 1.85 kg
Download E-Brochure
|
|

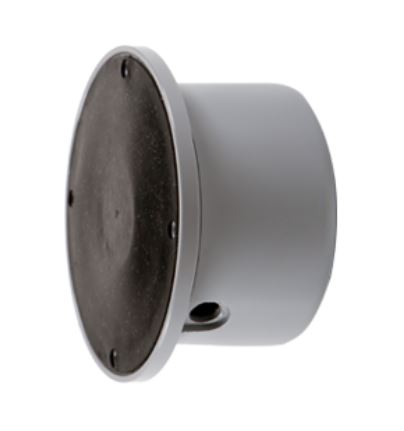

Filsa - A100
|
|
|
|
Membrane level indicator with small dimensions.
Is to be used to control the maximum or minimum level of bulk solids in silos or vessels or control the flow and obstructions in tubes, pipes, conveyors, etc.
Density of the product 0.3 t/m3 ... 1 t/m3
Maximum pressure +0.5 bar
Cable entry Ø 9 mm, Cable gland M12x1.5 depending on the model
Maximum voltage 250 V AC
Ambient temperature -10 ºC ... +60 ºC
Weight 0.2 kg
|
|
